TC6R rear axle disc brake kits with 16″ rotors are the ultimate big brake solution for highly customized and modified trucks or SUV’s upgraded to larger than stock wheels. TC6R kits can fit many 20″and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.
Wilwood’s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810″ thick, with 11.00″ – 12.88″ diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.
Wilwood bearings are manufactured to the highest specifications. With the strictest tolerances to insure the highest performance and long life. Individual race (cup) and Bearing (cone) bearings are available for purchase separately.

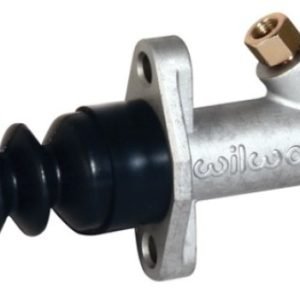

This new version of Wilwood’s Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37″compact body provides 2.16″ of additional clearance between the mounting flange and the fluid outlet. A full 1.12″ of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8″ NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.19″ diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
D8-6 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-6 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most ’67 or newer production wheels. Some wheels, including the 1965-66 OE “JK” code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16″ or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound “Smart Pads”.
D8-4 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-4 calipers provide low-maintenance performance, a huge weight savings, and high temperature reliability for street or track. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most ’67 or newer production wheels. Some wheels, including the 1965-66 OE “JK” code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16″ or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound “Smart Pads”
Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. • Specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders (P/N’s 260-8555, 260-8556, 260-9439, 260-12900 or 260-13375), in manual or boosted system applications. Kit includes: • Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. • Stainless steel button head fasteners thread into the black e-coated L/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.

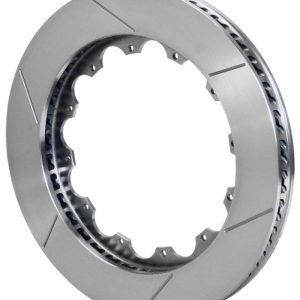

Wilwood’s GT 72 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001″ run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.
The new Aero4 forged four piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88″ to 15.00″ give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero4 is the latest innovation to the W4A / W6A series of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly.
Wilwood’s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810″ thick, with 11.00″ – 12.88″ diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.

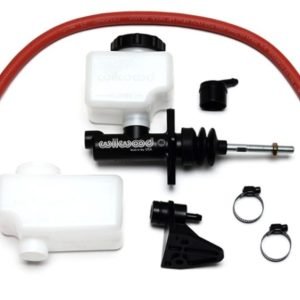

Remote Reservoir Compact Master Cylinders are the perfect solution for club sport racers, small open wheel cars, or any other custom application where there is limited space for the master cylinder and fluid reservoir. Aluminum cylinders designed for use with either a detachable or remote fill reservoir. Available in four bore sizes from .625″ to .813″ with a full 1.4″ of stroke to accommodate short pedal ratios, small brake calipers, and hydraulic clutch actuation on space limited application.
