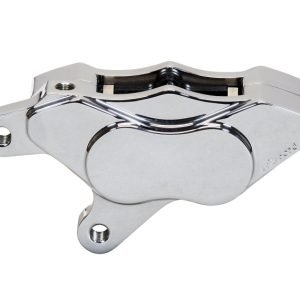

Wilwood’s GP310 motorcycle disc brake caliper has been designed and engineered for use on 2008 to Present Harley-Davidson Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Direct leg-mounted calipers are available for all single and dual disc models
Wilwood’s new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Wilwood’s D52 Rear Caliper Kit offers a matching rear replacement option for our front D52 calipers. It is a direct bolt-on 2-piston replacement for the factory original single piston calipers used on many custom application rears. With the added benefit of smaller rear piston sizing (2.46 sq-inches of area) not normally available in OEM calipers, for correct front and rear bias. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations.
Wilwood’s Classic Series front disc brake kits for 1964 to 1974 GM A-body, X-body and 1967-69 F-body offer disc brake upgrade solutions for OEM Drum & Disc brake spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.00″ diameter x 1.00″ thick one-piece rotors. This new kit widens the track by only +.47″ from original drum brake position or narrows by -.03″ from the original disc brake rotor assembly. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14″ OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware and detailed installation instructions. Kit requires purchase of additional brake line kit shown below.

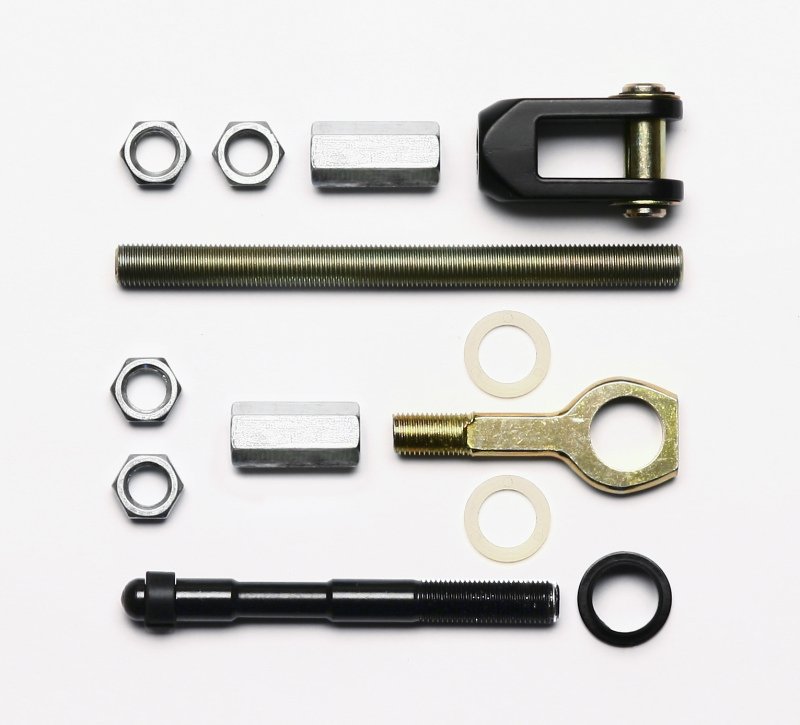

Wilwood’s Universal Brake Pedal Pushrod Kit allows many common configurations for custom installation of power boosters or manual master cylinders. Adjustable length kit contains all the necessary components for pedal engagement and height adjustment for most common types of installations. Kit includes: adjustable length pushrods, unions, clevis, eyelet and retainer.

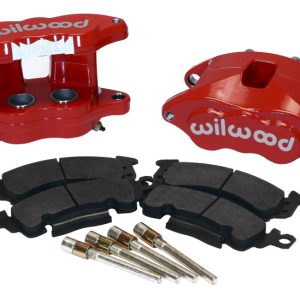

Wilwood’s D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00″ piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below.
Wilwood two pound and ten pound residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The two pound valve is used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers and fluid drain back occurs from gravity and vibration, thereby causing excessive caliper piston retraction and a longer brake pedal stroke. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. With drum brakes, a ten pound valve is used to compensate for return spring tension and maintain wheel cylinder sealing in the drums. Residual Pressure Valves are made from billet aluminum and color coded for easy identification. Valves with fittings are supplied with two 1/8-27 NPT to 3/-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25″ side mounting holes spaced 1.00″ apart. Inlet / outlet ports are 1/8-27 NPT.
Wilwood Pad Set BP-40 7812 Dynapro Dynalite-w/Bridge Bolt

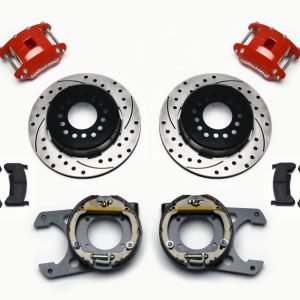

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19″ one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
Wilwood Flexline Kit 64-72 Most GM w/ DLS Forged Dynalite or SL6 Front Caliper
Wilwood Flexline Kit D52 Caliper 18in w/ Banjo 10mm -3/8-24 Chassis
Wilwood Hub Seal

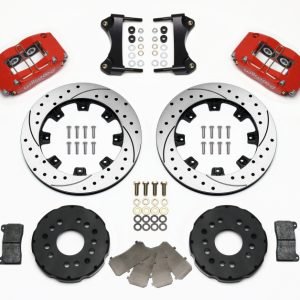

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.
Wilwood’s D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00″ piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below.

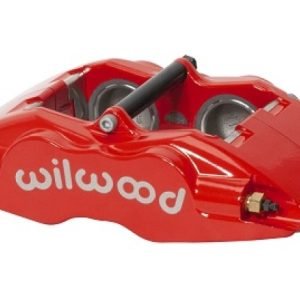

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.
