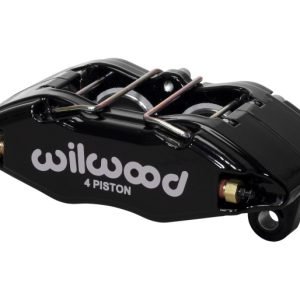

The Forged DynaPro Honda/Acura (DPHA) caliper represents the newest generation of calipers designed exclusively as a direct bolt-on for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum 15″ wheels. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with most OE master cylinders and will maintain ABS function. DPHA calipers are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19″ one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

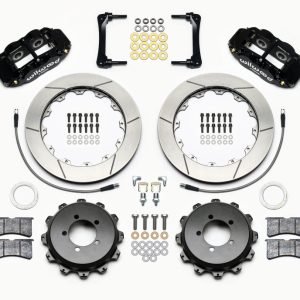

Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 12.88″ rotors in this group of big brake kits for custom high performance Import Cars. This group of specialized kits retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 12.88″ and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.

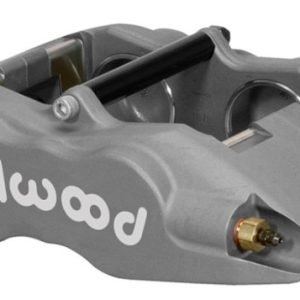

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

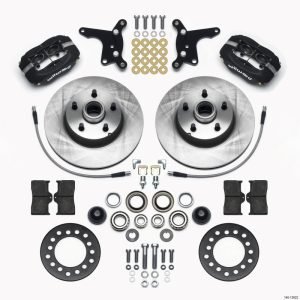

Wilwood’s Classic Series front disc brake kits for Ford vehicles (including Thunderbird) from 1954 to 1956, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring an 11.28″ x 1.00″ rotor and hub assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15″ wheels. FDL 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and, hub assembly, brackets, hardware and line kit.
FSLI4 and FSLI4/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. These are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.
The new Aero6 forged six piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88″ to 15.00″ give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero4 is the latest innovation to the W4A / W6A series of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly.

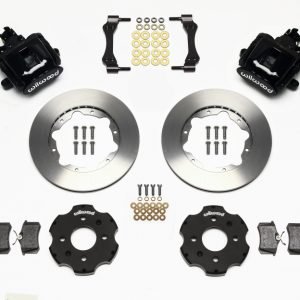

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.
The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood’s Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

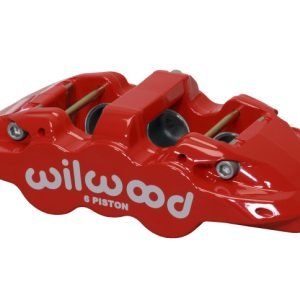

DynaPro 6 forged billet calipers are combined with 12.19″ diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an inter
