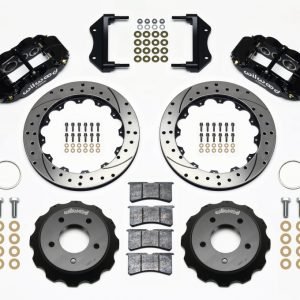

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13″-14″ big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

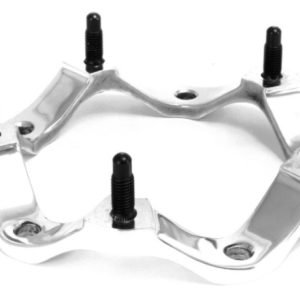

Wilwood’s unique 2″ offset aluminum Wide 5 Wheel Spacer utilizes a radical triangulated design to achieve maximum strength and rigidity. This race proven wheel spacer is lighter than any other on the market. Available with coarse 5/8″ studs.
NDPR forged billet, radial mount four piston calipers are used in this select group of drag racing kits. The OE brakes on vehicles originally equipped with 16″ or larger wheels generally do not fit inside the popular 15″ drag wheels. Specially designed radial caliper mount brackets bolt directly to the OE caliper mount, and provide secure and accurate mounting for the NDPR caliper. Kits with 3/8″ steel rotors are recommended for four-wheel disc brake cars up to 2,800 pounds. Kits with .81″ rotors should be used on cars over 2,800 pound cars, or lighter cars running extreme speeds desiring increased rotor durability.
Wilwood’s Dual Cylinder Inline Cutting Brake kits utilize a single inlet, twin outlet flow-through master cylinder to simplify plumbing of the existing calipers and deliver precise steering-brake control for all types of off-road competition vehicles. This unit features a weight-saving, all-aluminum design with a high-leverage forged lever arm and an ergonomic full-length hand grip. Twin 3/4″ bore cylinders combine with the high leverage lever arm to create instant high-pressure with minimal operator effort. The one-piece cast body incorporates integral mounting lugs to make for easy and secure mounting. The entire assembly is e-coat finished to resist weathering and oxidation.
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6.25:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19″ one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

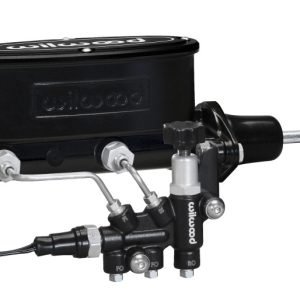

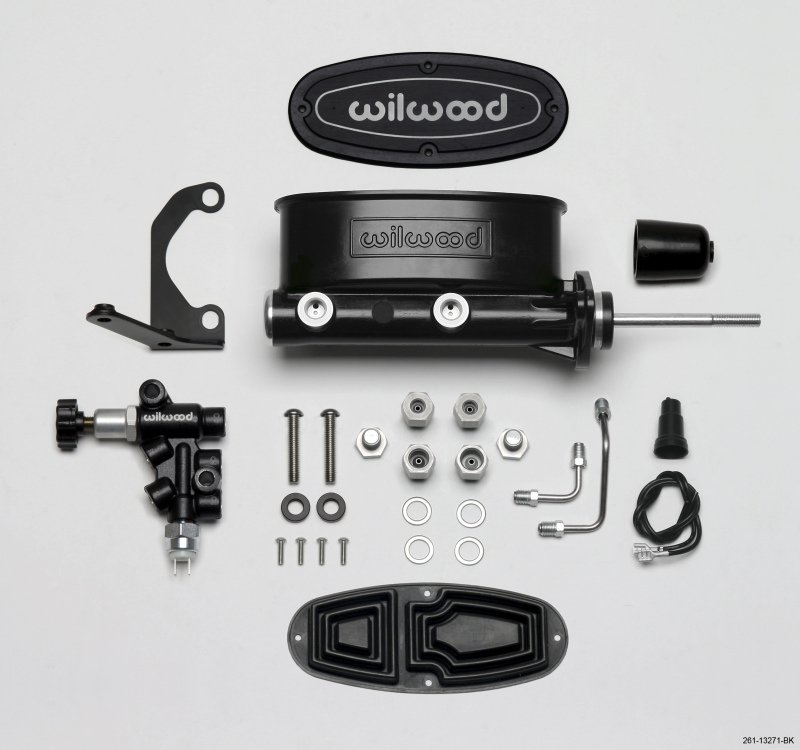

Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in four bores sizes, 7/8″, 15/16″, 1.00″ or 1-1/8″, and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you’re finished.
The Superlite 6R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL6R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required.
The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13″-14″ big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13″-14″ big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

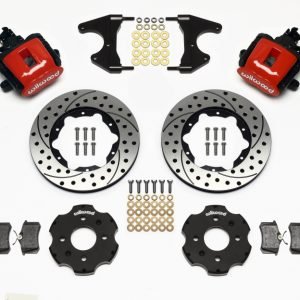

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.

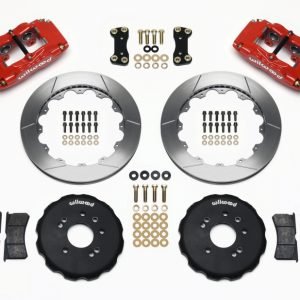

The big pad capacity of the forged Superlite four piston caliper is combined with oversized rotors for this unique group of specialized application kits. The roots of the forged Superlite are deep in competition. It is a track proven performer. But the FSL is far from one dimensional. Lug mounting and a full range of piston sizes give the FSL widespread adaptability for applications with unique mounting and piston volume requirements. Options for caliper finish and rotor design provide the opportunity to configure these kits for high-tech style with full capability for extreme duty use on the street or at the track.
