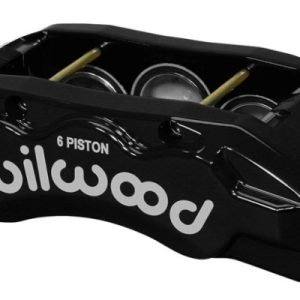

The Tactical Xtreme TX6R radial mount six-piston calipers are engineered and purpose built for severe duty service on heavy duty Trucks, SUV’s, and Class 1, 2, and 3 Armored Vehicles up to 14,000 lbs. GVWR. The combination of the forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50″ thick, make the TX6R the ultimate choice for high strength, lightweight, and tactical level braking capacity for all types of highway and off-road extreme duty service applications. TX6R calipers have a hard anodized finish on base models with options for gloss black or red powder coat.
Wilwood’s Lug Mount Front Bracket kits mounts Lug mount calipers with 5.25” center to center mount used in various Wilwood calipers. Mounts are application (vehicle) specific and contain 3/8-24 clinch nuts for caliper mounting. Engineered from high strength aluminum alloy.
AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00″ to 15.00″rotors provide maximum cooling for sustained high heat durability.
Wilwood handbrake lever assemblies provide a lightweight, high-leverage component for drift cars, drag race cars and rally cars or any application where hand-actuation of one or more brake calipers is employed. With a lightweight aluminum forged 11:1 ratio “H” beam lever with ergonomic grip in a choice of vertical or horizontal static lever positioning Accepts any vertical flange master cylinder with 2.25” mount centers. Finished an a durable long lasting e-coat finish for corrosion resistance.

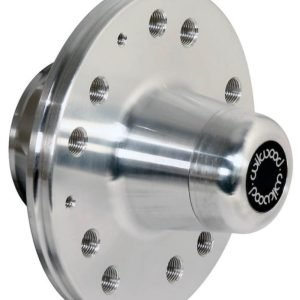

Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats, this specific hub is double drilled on a 5 x 4.50″ / 5 x 4.75″ wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.
Wilwood’s D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00″ piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below.
Our Starlite 5 & STD Weight Starlite 55 Dust Cap for Drive flanges is punched from a thick steel plate for strength and durability. This cap won’t distort, crack or leak after repeated use and is plated for corrosion resistance.

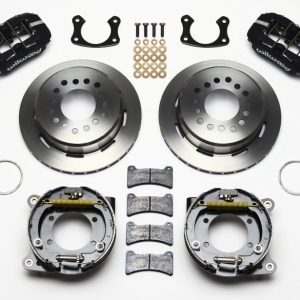

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00″ to 15.00″ rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00″ one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
FDL Front Drag kits are drag racing’s most popular front brake kits. FDL kits are available for the popular muscle car spindles and select aftermarket front struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.
Forged Narrow Superlite 6R four piston calipers are combined with BP-10 compound pads and 14.25″ rotors in this group of big brake kits for Trucks. This group of specialized kits retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL6R rear kits provide complimentary style and performance with 14.25″ and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.
Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00″ to 16.00″ GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.
