Sale!

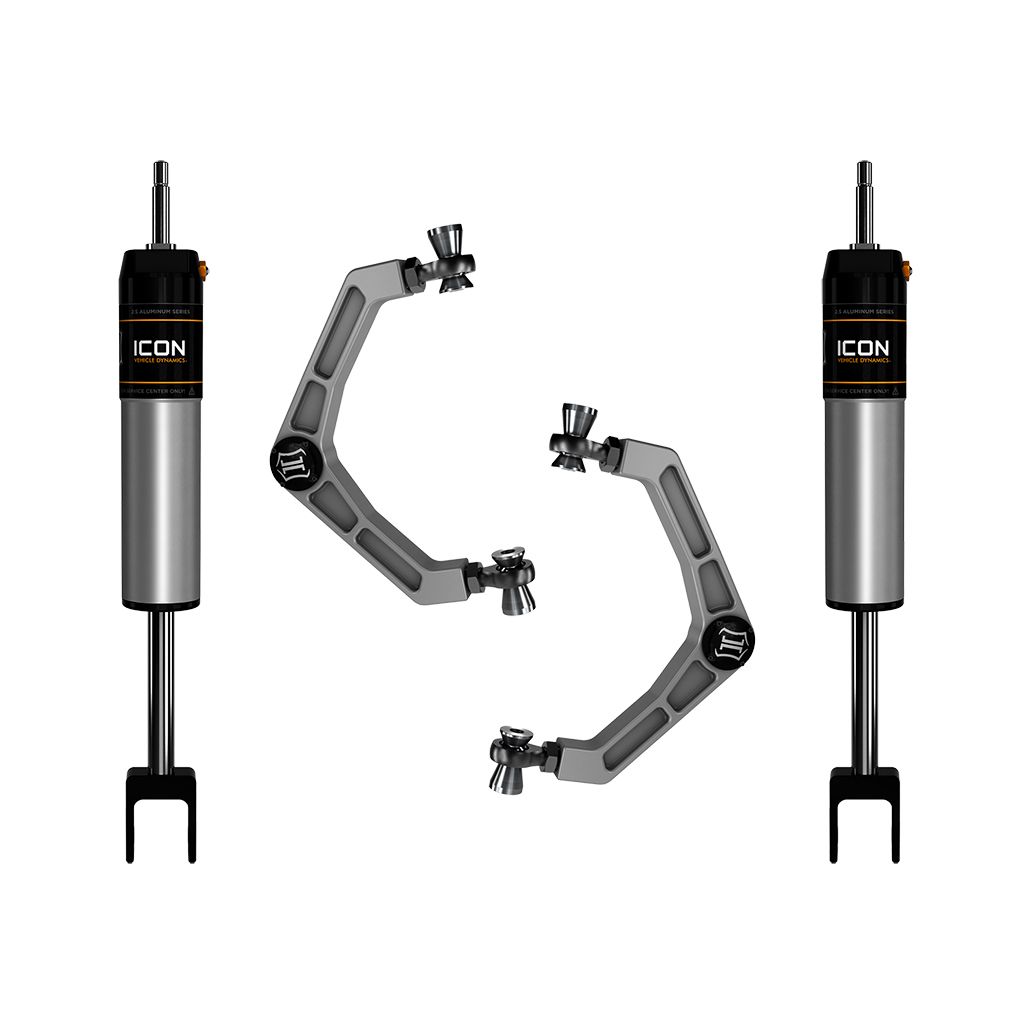

20-UP GM HD 0-2″ IR SHOCK SYS W/ BILLET UCA

$2,349.95

2020-UP GM HD 0-2" LIFT INTERNAL RESERVOIR SHOCK SYSTEM WITH BILLET UCA

  • Features ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
  • 100% Rebuildable
  • 100% Revalveable
  • CNC machined 6061 billet aluminum construction for light weight and exceptional strength
  • Additional camber and caster adjustability allows for precise wheel alignment
  • PTFE Lined 7/8” FK Rod Ends for improved response
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Nitrogen charged monotube design with internal reservoir
  • Built in o-ring sealed dust cover cap
  • Vehicle specific taper pin provides OE-like fitment
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • 7/8″ diameter induction hardened, chrome plated shock shaft
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

Out of stock

Category: SKU: FRDK-78732

Description

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

Additional Attributes:

GTIN: 00840103410555
Mounting Hardware Included: Yes
Grease Fitting Included: yes
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Mounting Type: Press In
Ball Joint Stud Type: Threaded
Ball Joint Included: Yes
Grade Type: Performance
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushing Material: Rod End Bearing
Control Arm Color: Silver
Control Arm Construction: Billet
Control Arm Material: Aluminum
Pre-Greased: Yes
Bushing Color: Gold
Finish: Anodized
Adjustable: No
Adjustable Control Arm: yes
Add-On Part: 77202 – 2020-UP GM HD FRONT SPLASH GUARD KIT

Packaging:

Quantity of Each: 1.0
Package UOM: EA

PDF:
