Sale!

20-UP GM HD 0-2″ CDCV SHOCK SYS W/ TUBE UCA

$2,349.95

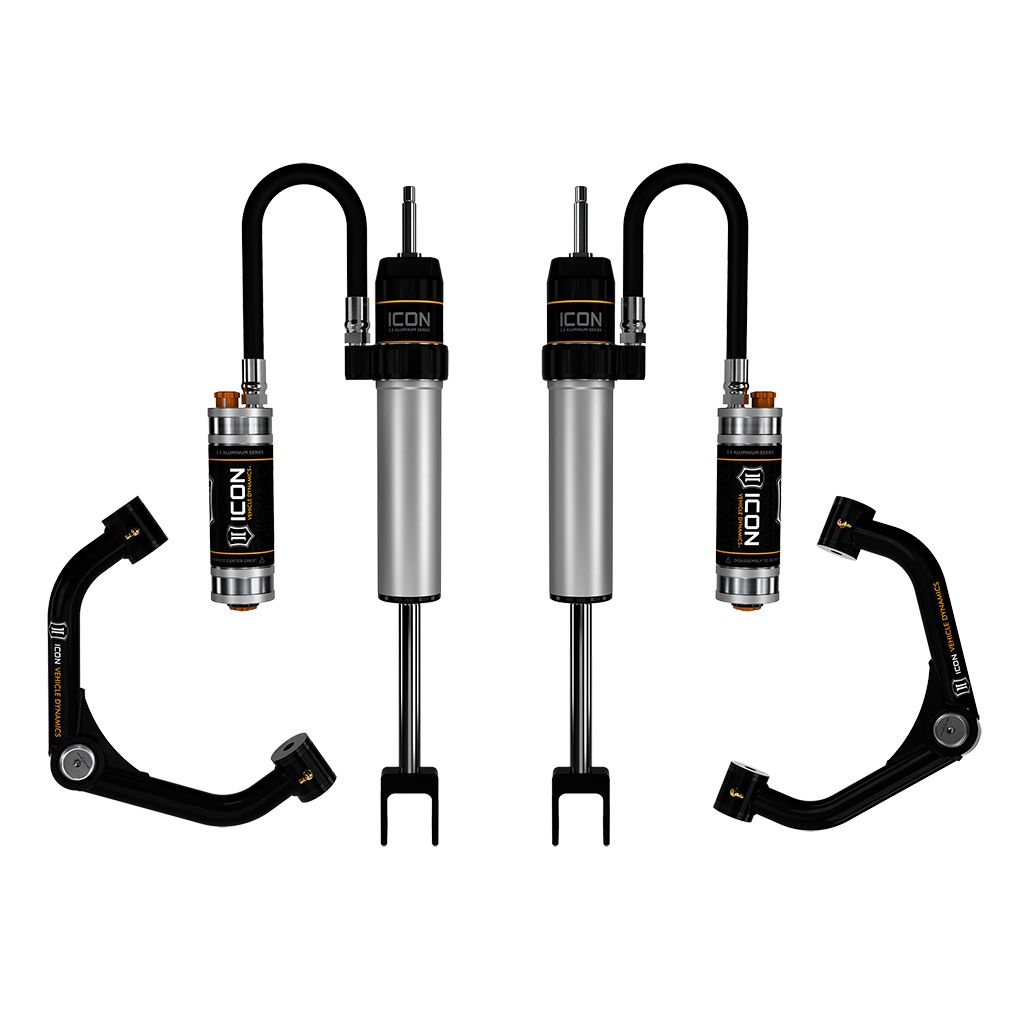

2020-UP GM HD 0-2" LIFT CDCV SHOCK SYSTEM WITH TUBE UCA

  • Features ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
  • CNC Bent Tubing
  • CNC Machined Bushing Housings and Sleeves
  • Built-In Caster Correction
  • Serviceable Dual Stage Bushings
  • Black Semi-Gloss Powder Coat Finish
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Nitrogen charged monotube design with remote reservoir
  • ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • 7/8″ diameter induction hardened, chrome plated shock shaft
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • 6061 aircraft grade aluminum CNC machined components
  • 100% Rebuildable
  • 100% Revalveable
  • 1026 DOM Steel Construction

Out of stock

Category: SKU: FRDK-78735T

Description

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all of ICON’s Shock Absorbers, the V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Additional Attributes:

GTIN: 00840103410623
Mounting Hardware Included: Yes
Adjustable: No
Bushing Material: Polyurethane
Bushing Color: Black
Finish: Powdercoated
Pre-Greased: No
Grease Fitting Included: yes
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Mounting Type: Press In
Ball Joint Stud Type: Threaded
Ball Joint Included: Yes
Control Arm Construction: Tubular
Control Arm Material: Steel
Grade Type: Performance
Control Arm Color: Black
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Add-On Part: 191011 – TUBULAR UCA BILLET CAP SET

Packaging:

Quantity of Each: 1.0
Package UOM: EA

PDF:

Additional information

Weight50.0000 lbs
Dimensions31.0000 × 13.0000 × 7.0000 in
