20-UP GM HD 0-2″ CDCV SHOCK SYS W/ BILLET UCA

$3,199.95

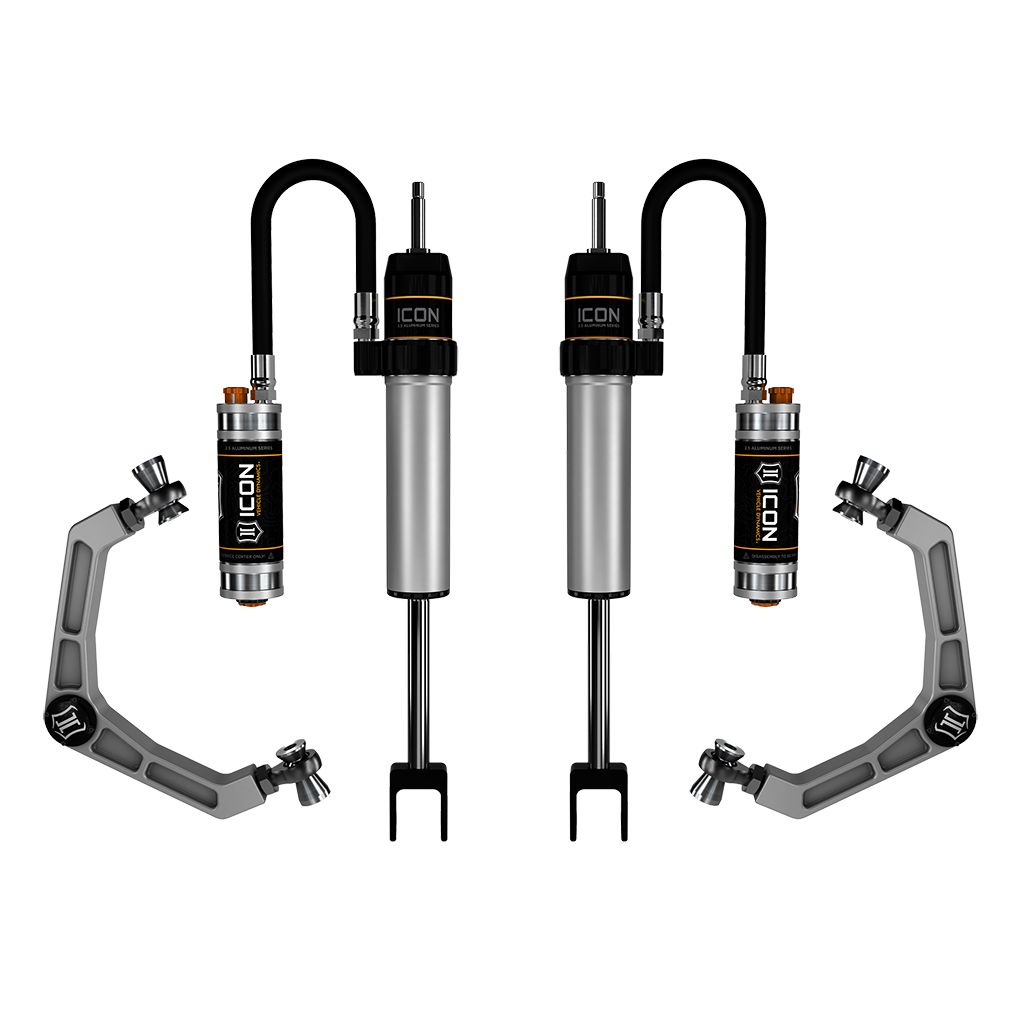

2020-UP GM HD 0-2" LIFT CDCV SHOCK SYSTEM WITH BILLET UCA

  • Features ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Nitrogen charged monotube design with remote reservoir
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • Built in o-ring sealed dust cover cap
  • Vehicle specific taper pin provides OE-like fitment
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • 7/8″ diameter induction hardened, chrome plated shock shaft
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • 100% Rebuildable
  • 100% Revalveable
  • CNC machined 6061 billet aluminum construction for light weight and exceptional strength
  • Additional camber and caster adjustability allows for precise wheel alignment
  • PTFE Lined 7/8” FK Rod Ends for improved response

Out of stock

Category: SKU: FRDK-78735

Description

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all of ICON’s Shock Absorbers, the V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Additional Attributes:

GTIN: 00840103410579
Mounting Hardware Included: Yes
Adjustable: No
Finish: Powdercoated
Grease Fitting Included: yes
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Mounting Type: Press In
Ball Joint Stud Type: Threaded
Ball Joint Included: Yes
Grade Type: Performance
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushing Material: Rod End Bearing
Control Arm Color: Silver
Control Arm Construction: Billet
Control Arm Material: Aluminum
Pre-Greased: Yes
Bushing Color: Gold
Adjustable Control Arm: yes
Add-On Part: 77202 – 2020-UP GM HD FRONT SPLASH GUARD KIT

Packaging:

Quantity of Each: 1.0
Package UOM: EA
