20-UP GLADIATOR 2.5" STAGE 8 SUSPENSION SYSTEM (BILLET)
20-UP GLADIATOR 2.5" STAGE 8 SUSPENSION SYSTEM (BILLET)

20-UP GLADIATOR 2.5″ STAGE 8 SUSPENSION SYSTEM (BILLET)

Original price was: $6,741.42.Current price is: $6,420.40.

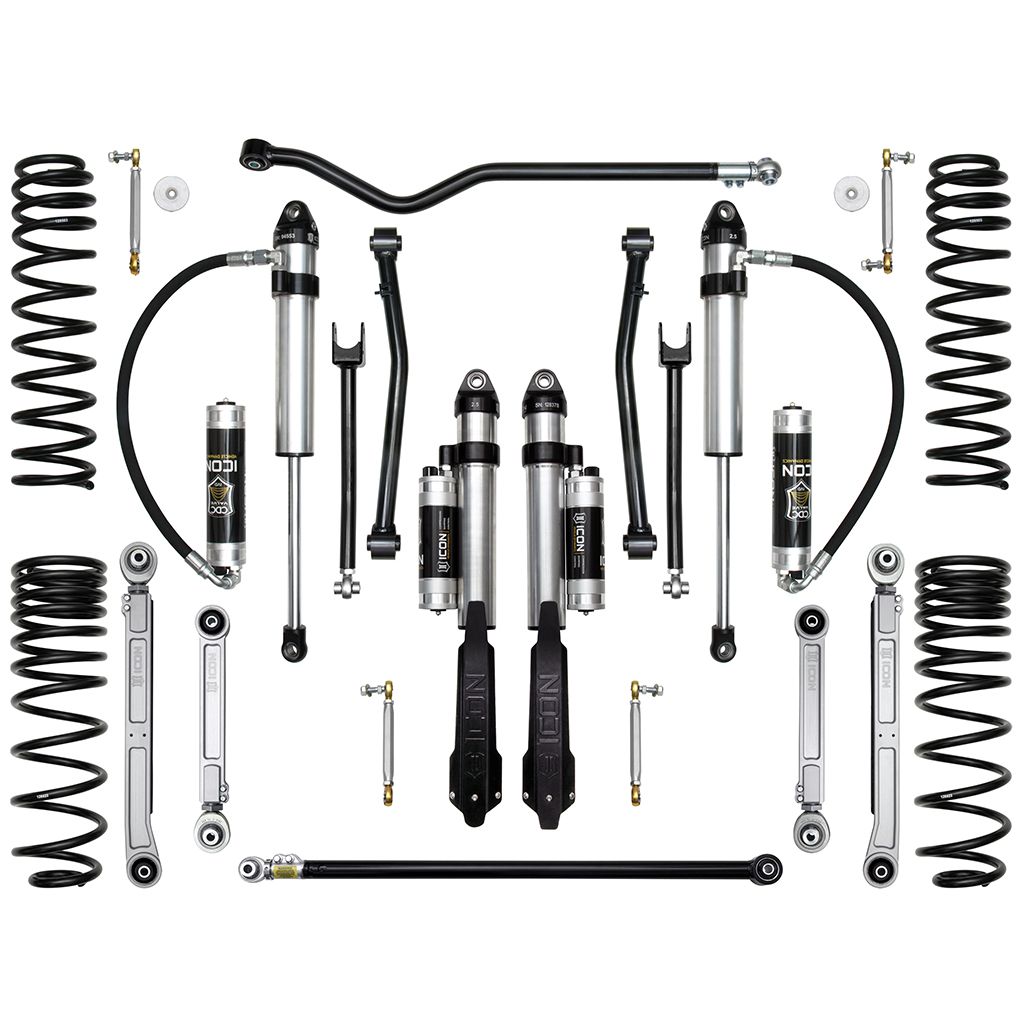

2020-UP JEEP GLADIATOR JT 2.5" STAGE 8 SUSPENSION SYSTEM WITH BILLET LINKS

  • 2.5″ lift height
  • Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
  • Front and rear track bars ensure proper alignment and improved articulation
  • Adjustable, billet aluminum front sway bar links
  • 100% bolt-on system makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Fits 35″ tires (37″ with extended bump stop spacer kit)
  • 33% front, 23% rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Front upper and lower links included for caster angle correction and improved front end articulation
  • Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
  • Dual rate front coil springs with lifetime guarantee against sagging/breakage
  • Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
  • 2.5 Series remote reservoir shocks with vehicle specific valving

Out of stock

Category: SKU: FRDK-K22108

Description

The Stage 8 ICON 2.5” Suspension System for the Jeep Gladiator is the ultimate setup for drastically improving off-road performance and providing an end-user adjustable ride quality for the application that will see heavy off-road use across a wide variety of vehicle loadouts and terrains. This complete suspension system features ICON’s proven 2.5 Series shocks with CDC Valve technology, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a billet rear sway bar link kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

Additional Attributes:

GTIN:
Mounting Hardware Included: Yes
Spring Material: Steel
Bushings Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.5
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 2
Add-On Part: 22071 – 20-UP JT EXTENDED BUMP STOP SPACER KIT
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Packaging:

Quantity of Each: 1.0
Package UOM: EA

PDF:
