Name: 05-UP TACOMA RXT STAGE 1 UPGRADE SYSTEM
SKU: FRDK-K53161
Price: 2649.85 USD
Availability: OutOfStock

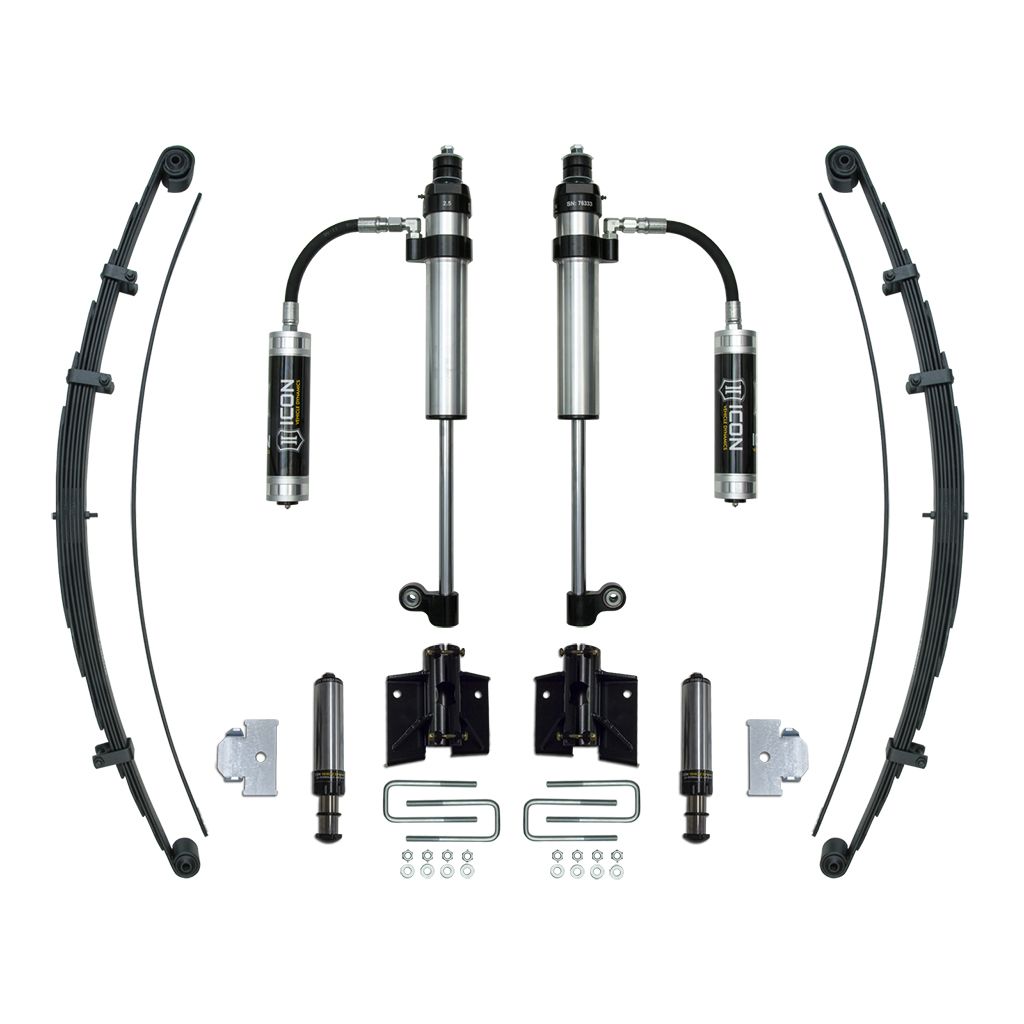

05-UP TACOMA RXT STAGE 1 UPGRADE SYSTEM

2005-UP TACOMA RXT STAGE 1 UPGRADE SYSTEM

ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
ICON RXT Rear Shock: Corrosion resistant anodized aluminum shock bodies with 7/8″ shafts
ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
ICON RXT Rear Shock: Simple and straightforward installation
ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 ¼” CNC machined nitro steel shaft
ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume

Out of stock

Description

Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-UP Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.

Additional Attributes:

GTIN:
Mounting Hardware Included: Yes
Spring Material: Steel
Bushings Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.63
Leaf Spring Leaf Quantity: 7
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Packaging:

Quantity of Each: 1.0
Package UOM: EA

PDF:

I56103_REVE

Reviews

There are no reviews yet

Add a review

Currently, we are not accepting new reviews

Make	Model	Year
Tacoma	RXT	2005 - 2018
